Worm Drive Gate Automation

Worm driven gate operators are ideal for large and heavy swing gates. They are powerful and reliable machines that will offer years of exceptional service. They are attached to the gate posts and pivot around that attachment point and use a screw type movement to shorten the dimensions and open the gate.

Worm drive motors are ideal if you decide to retro-fit automation at a later date. They are strong, reliable and durable, and only require periodic maintenance.

Whilst they are perfect for wooden gates, if you decide to have wrought iron gates fitted to the front of your property, worm drive motors might not be the most desirable solution as the motor arm will be visible through the gaps in the bars. If aesthetics are of primary concern, we recommend having underground motors fitted instead.

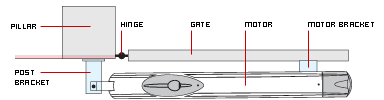

Diagram (viewed from above) showing an Amico motor attached to a pillar and a gate.
  • Axo
  • Ati
  • Krono
  • Amico
Axo Motors download pdfDownload Info Brochure

Axo

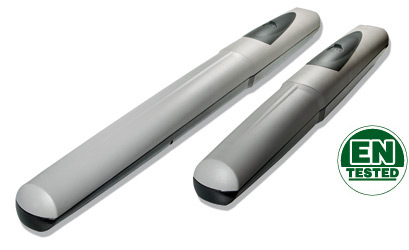

The AXO range has a motor suitable for any application. From 230v residential uses on smaller gates; with the 3 metre version, to opening exceedingly heavy or large gates with the 7 metre version.

Combined with the functionality of the ZM3E or ZLJ24 control panels, Axo motors the Axo range offers a vast array of functions and is capable of meeting the EN Standards straight out of the box. This ensures unparalleled safety, security and both quicker and cheaper installation.

Built-in encoder technology enables constantly monitoring and controlling of the gates' movement, ensuring complete safety.

Despite these advantages, we would still recommend that one of our trained engineers performs a full site survey and risk assessment - at absolutely no cost to you!

Ati Motor

Ati

download pdfDownload Info Brochure

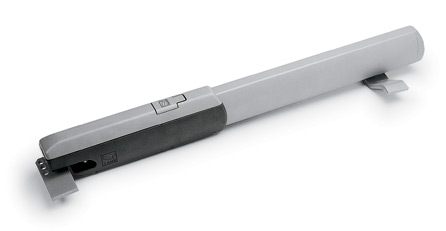

The ATI motors are extremely strong and able to cope with heavyweight gates. The strength of the ATI motor is achieved by the irreversibly geared worm drive mechanism. All the models can be operated by all the standard CAME accessories e.g. remote controls, push buttons, keypads etc. In the eventuality of a power cut the ATI machine has a key operated manual release mechanism.

A common application for the ATI series would be to operate a traditional five bar wooden gate. A situation in which the ATI series is very useful, is a pair of closed-in boarded gates in an exposed position, where the force of the wind will pose no problems to the strength of the ATI. The ATI worm drive electric gate operator is a cost effective and efficient way of automating your gates.

RJP Electric Gates are able to visit your gateway to professionally ensure that the ATI automation system is the best possible solution for your requirement.

The underground gate motors can be operated by all the standard CAME accessories e.g. remote controls, push buttons, keypads etc.

Krono Motor

Krono

download pdfDownload Info Brochure

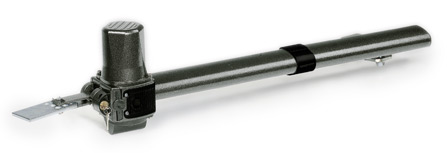

Manufactured in aluminium, the Krono provides robust and reliable operation. Available in two versions, the Krono can be installed on gate leaves of up to 3 or 5 metres wide.

The Krono is most commonly used for prestigious wrought iron gates; integrating harmony, aesthetics and functionality. Krono consistently prooves to be an extremely simple, flexible and cost effective solution. It is the ideal solution in small hinge geometry situations - where the space between the opened gate and the pillar or wall is very tight.

RJP Electric Gates are able to visit your business premises to professionally ensure that the Krono automation system is the best possible solution for your requirement.

Krono motors can be operated by all the standard CAME accessories e.g. remote controls, push buttons, keypads etc.

Amico Motor

Amico

download pdfDownload Info Brochure

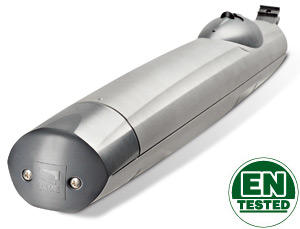

The AMICO swing gate motor offers a great solution for gate automation. The simple worm drive mechanism is convenient and reliable, capable of opening gate wings of 1.8 metres (about 5’11”) weighing up to 200kg.

The Amico combined with the ZL90 control panel meets UK Safety laws in relation to power output of the gate. This makes it easier for us to deliver a safe, building-regulations compliant automated gate without the need for excessive additional accessories, helping to keep costs and installation time to a minimum.

RJP Electric Gates are able to visit your business premises to professionally ensure that the Amico automation system is the best possible solution for your requirement.

Amico motors can be operated by all the standard CAME accessories e.g. remote controls, push buttons, keypads etc.
