Sliding Gate Automation

There are two different types of sliding gate mechanism:

  • The traditional roller-tracked sliding gate

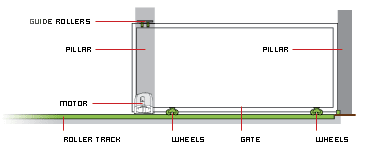

    Diagram of a tracked sliding gate.
  • The cantilever sliding gate

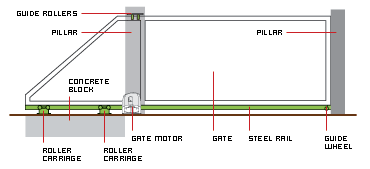

    Diagram of a cantilever sliding gate.

A tracked sliding gate runs on wheels along a grooved steel rail that is buried just below ground level.

A cantilever gate is counterbalanced above the ground, supported by rollers fitted to the bottom of the gate. The advantage of a cantilever gate is that you don't have to keep the track free of leaves - however, cantilever gates are generally more expensive as they require more civil engineering.

Both roller-tracked AND cantilever gates can be automated using any of the CAME motors pictured below.

A swing gate may cause an obstruction if your driveway turns sharply to the left or right. Therefore, a sliding gate may be the only solution when there is limited space in your driveway area.

Please bear in mind that a sliding gate does require more space width ways than a swing gate however!

The installation of an electric sliding gate system is a little more involved than any other type of electric gate, but once the correct ground track and/or cantilever roller frames are installed, then the installation follows the same format as with other types of electric gates.

Our trained engineers will be more than happy to visit your property to discuss which system would be the most effective solution for your needs.

  • BY-3500T
  • BK
  • BX
  • BX-243

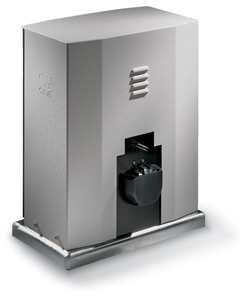

BY3500T Sliding Gate Motor download pdfDownload Info Brochure

By - 3500t

BY3500T is the ideal solution for powering exceptionally heavy sliding gates weighing up to 3500Kg! A state-of-the-art control board provides maximum resistance to wear and total safety.

The 3-phase voltage power supply to the unit ensures intensive service even under heavy duty working conditions such as armoured gates or hangar doors.

BK Sliding Gate Motor download pdfDownload Info Brochure

BK

The BK is the ultimate when it comes to service and safety. It is designed for automating gates to apartment blocks and for industrial and collective area sliding gates in general. It comes in 9 different versions – all designed to meet the usage requirements and solve any needs related to considerable weight, and thickness.

3-phase technology enables the operator to reach its full potential. It features self-diagnostics of the safety circuits which blocks the system from working if one of the photocells or sensitive edges malfunctions; and the auxiliary lighting of the driveway area, which is directly controlled by the built-in electronic card.

BX Sliding Gate Motor download pdfDownload Info Brochure

BX

The BX is the solution for automating medium sized sliding gates.

Thanks to high levels of efficiency and safety, it is suitable for numerous applications, both in residential and apartment block settings. The series offers four 230V A.C. versions and one 24V D.C. model to be used under intense work loads and is ideal where there are frequent power cuts.

The built-in control boards are all latest-generation and fitted with all the indispensable commands for a complete system. They can be integrated at any time with any of CAME’s safety and command accessories.

BX-243 Sliding Gate Motor download pdfDownload Info Brochure

Bx243

Tested in compliance with European Legislation, BX-243 is a complete automation system for sliding gates. An ideal solution for residential installations, this innovative operator has been brought up to EU and international standards for impact forces and meets even the most stringent safety requirements.
